Nasa's Pegasus barge that will carry fuel tanks for the Space Launch System to other NASA facilities for testing and launches.

More Info:
NASA Infographic: https://www.nasa.gov/exploration/systems/sls/multimedia/barge-pegasus-infographic
Pegasus Barge Fact Sheet: https://www.nasa.gov/sites/default/files/atoms/files/sls_pegasus_fact_sheet_508_final_04212017.pdf

On NASA’s Pegasus Barge

Nasa’s Pegasus barge that will carry fuel tanks for the Space Launch System to other NASA facilities for testing and launches.

More Info:
NASA Infographic: https://www.nasa.gov/exploration/systems/sls/multimedia/barge-pegasus-infographic
Pegasus Barge Fact Sheet: https://www.nasa.gov/sites/default/files/atoms/files/sls_pegasus_fact_sheet_508_final_04212017.pdf

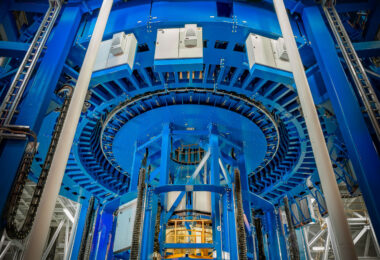

Inside the Vertical Weld Center. The friction-stir-weld tool for wet and dry structures on the Space Launch System (SLS) core stage. It will weld barrel panels together to produce whole barrels for the two pressurized tanks, the intertank, the forward skirt and the aft engine section.

More Info: https://www.nasa.gov/exploration/systems/sls/

Inside the Vertical Weld Center at NASA Michoud Assembly Facilit

Inside the Vertical Weld Center. The friction-stir-weld tool for wet and dry structures on the Space Launch System (SLS) core stage. It will weld barrel panels together to produce whole barrels for the two pressurized tanks, the intertank, the forward skirt and the aft engine section.

More Info: https://www.nasa.gov/exploration/systems/sls/

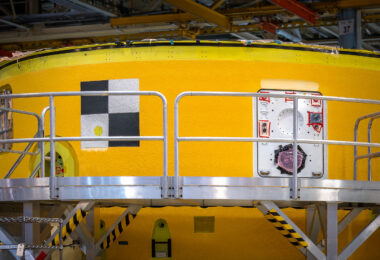

The Forward Skirt is part of NASA’s Space Launch System (SLS). Housing flight computers, cameras and avionics it is pretty much the brain of the rocket. This photo was taken a couple weeks after it’s final assembly was completed at NASA’s Michoud Assembly Facility. It will be used in Exploration Mission-1, launching from the Kennedy Space Center in June 2020.

#5 in the following NASA Infographic: https://www.nasa.gov/exploration/systems/sls/multimedia/infographics/corestage101.html
Space Launch System: https://www.nasa.gov/exploration/systems/sls/index.html

SLS Forward Skirt at NASA Michoud Assembly Facility

The Forward Skirt is part of NASA’s Space Launch System (SLS). Housing flight computers, cameras and avionics it is pretty much the brain of the rocket. This photo was taken a couple weeks after it’s final assembly was completed at NASA’s Michoud Assembly Facility. It will be used in Exploration Mission-1, launching from the Kennedy Space Center in June 2020.

#5 in the following NASA Infographic: https://www.nasa.gov/exploration/systems/sls/multimedia/infographics/corestage101.html
Space Launch System: https://www.nasa.gov/exploration/systems/sls/index.html
